11. Deploying as a serverless image

In the last lesson we wrote the stack code to classify an image using a website.

This time, we're going to deploy the app to the cloud so that we can share it with everyone!

Wouldn't it be amazing if we could just upload our code to a magical server, which was always online, behaved in the same way each time it handled a request, and could handle as many requests as we could ever need? And was completely free?

It would!

However, we don't have that. But we do have "serverless" architecture, which is pretty close - just not (quite) free.

To be clear, there are still physical machines out there running our code! We just don't have to think too much about how they work, or how to manage them. We just upload our code, and it runs.

We've already made our app Lambda compatible, with the code at the end of our main.py script:

# Define the Lambda handler
handler = Mangum(app)


# Prevent Lambda showing errors in CloudWatch by handling warmup requests correctly
def lambda_handler(event, context):
    if "source" in event and event["source"] == "aws.events":
        print("This is a warm-ip invocation")
        return {}
    else:
        return handler(event, context)

This allows us to server our FasrAPI application using an AWS lambda.

The Mangum wrapper is what facilitates this, and the def lambda_handler acts as the entry point to our Docker image.

Now there's one more thing we need to think about before we can deploy our code to the cloud. We've been using Python to write our code, and we've been using a few libraries to help us out.

When we run our code on our own machine, we have a specific version of Python installed, and we have specific versions of the libraries we're using installed. If we run our code on a different computer, we might have a different version of Python, or different versions of the libraries we're using. This means that our code might behave differently on different computers.

In order to make sure that our code works in the same way each time it is run, we need to make sure that the environment it is run in is the same each time. This is where Docker comes in.

We can package our code, and all of its dependencies into a single "image", which can then be run on any machine that has Docker installed.

Dockerfile

The set of instructions for creating a Docker image is called a "Dockerfile":

touch Dockerfile

It's a text file that contains all of the commands a user could call on the command line to assemble an image. This might include:

• Which base image to use (this is might be an almost empty operating system with some basic utilities installed)
• Which files to copy into the image
• Which commands to run when the image is built
• Which ports to expose
• Which commands to run when the image is started

Here's what our Dockerfile looks like:

FROM public.ecr.aws/lambda/python:3.9

# Install dependancies
COPY ./requirements.txt /requirements.txt
RUN pip install --no-cache-dir -r /requirements.txt

# Copy app code
COPY . .

# Lambda handler
CMD ["main.lambda_handler"]

1. We're using a pre-built image from Amazon, which has Python 3.9 installed.
2. We copy our requirements.txt file into the image, and install the dependencies.
3. We copy the rest of our code into the image.
4. We tell Docker which function to run when the image is started.

In our Dockerfile we use the CMD command to tell Docker to run our lambda_handler function in main.py when the image is started.

🏗 Building the Image

We don't have to do this manually, but we can check that everything is working by building the image and running it locally.

However, when on AWS the app is run by Lambda, and locally we use Uvicorn. So we need to make some changes to the Dockerfile.

The base image needs to be:

FROM python:3.9

And the CMD command in our Dockerfile to run Uvicorn instead of Lambda.

# Expose the port the app runs on
EXPOSE 8000

# Command to run the application using Uvicorn
CMD ["uvicorn", "main:app", "--host", "0.0.0.0", "--port", "8000"]

To build the image run:

docker build -t image-classification .

The -t flag tells Docker to tag the image with the name "image-classification".

And then run the container with:

docker run -p 8000:8000 image-classification

The -p flag tells Docker to map port 8000 on the host machine to port 8000 in the container.

If you visit http://localhost:8000/ in your browser, you should see the app running in the container!

FROM public.ecr.aws/lambda/python:3.9

# Lambda handler
CMD ["main.lambda_handler"]

We're going to use a tool called serverless to deploy our code to AWS Lambda. Serverless is a framework that makes it easy to deploy serverless applications to the cloud. I wish they had called it "serverlessless", but they didn't. So now the term is even more confusing than it needs to be.

We need to tell serverless how to build our image, and how to deploy it. We do this by creating a serverless.yml file:

service: image-classification-service

provider:
 name: aws
 memorySize: 4096
 region: eu-west-2
 timeout: 60
 ecr:
  images:
   image-classification:
    path: ./
    platform: linux/amd64

functions:
 AppFunction:
  image:
   name: image-classification
  url: true
  events:
   - schedule: rate(1 minute)

1. We give our service a name.
2. We tell serverless which cloud provider we're using.
3. Which region we want to deploy to, eu-west-2 (London) in this case.
4. How much working memory to allocate to our function (4096MB = 4GB).
5. How long to wait for our function to finish before timing out (60 seconds).
6. Elastic Container Registry (ECR) is a service that allows us to store Docker images. We tell serverless to build a single image, called "image-classification", from the Dockerfile in the current directory. We also tell it to build the image for the linux/amd64 platform.
7. We tell serverless to create a function called "AppFunction", and to use the image we just built.
8. And we want to poke our function every minute to keep it "warm" so that it responds quickly to requests.

npm install -g serverless

And then deploy the app to the cloud!

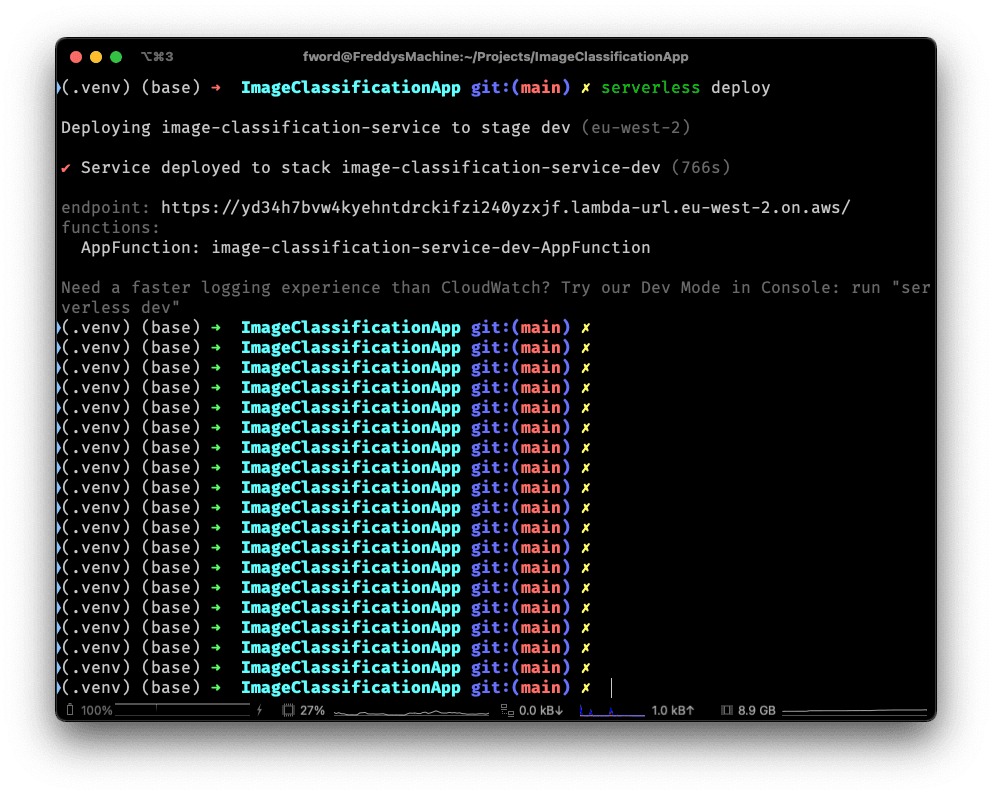

serverless deploy

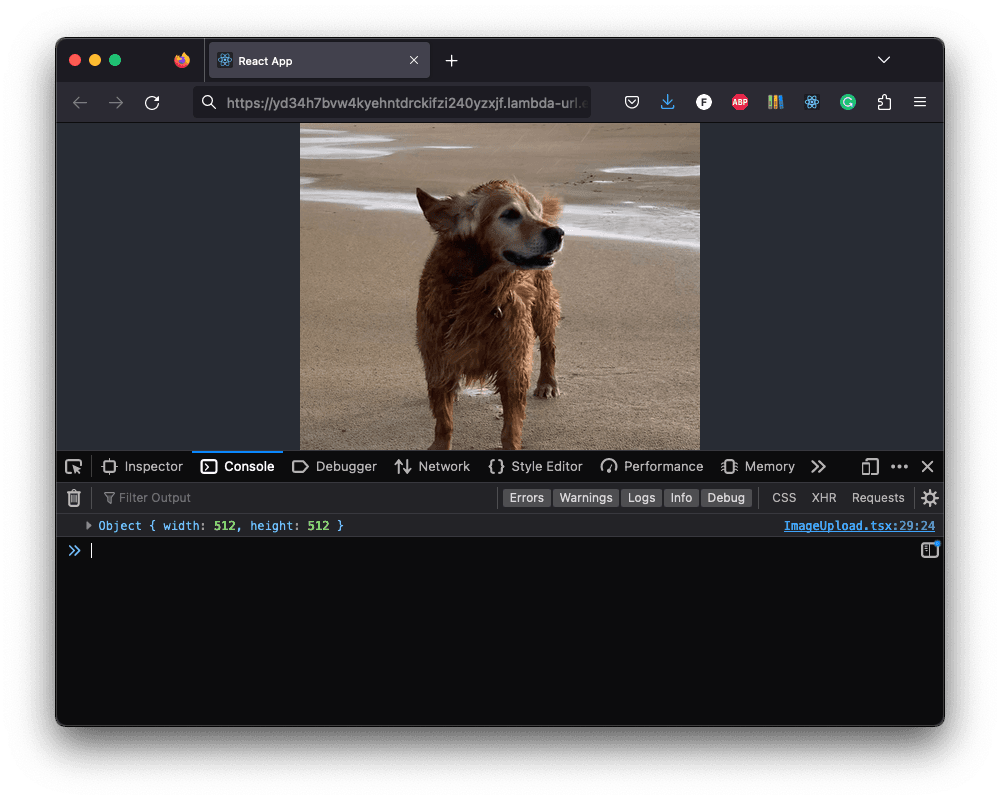

After a while (might be a few minutes), a URL will be printed out in the terminal. You can open this URL in your browser, and you should see the app running in the cloud!

If you wish to remove your app from the cloud, you can run:

serverless remove

AWS Lambdas are very very cheap per invocation (like fractions of a penny cheap), and AWS offers a reasonable amount of free invocations per month.

Nonetheless, if you're concerned you can add a rate limit to your application by modifying the serverless.yml file:

functions:
 AppFunction:
  memorySize: 4096 # Memory size in MB
  timeout: 60 # Timeout in seconds
  image:
   name: image-classification-example
  url: true
  events:
   - schedule: rate(1 minute) # Ping the function every 1 minute to keep it warm
   - http:
      path: api/v1/resource
      method: get
      cors: true
      throttling:
       maxRequestsPerSecond: 10

🎽 How to Run

🧱 Build Frontend

Navigate to the frontend/ directory:

cd frontend

Install any missing frontend dependancies:

npm install

Build the files for distributing the frontend to clients:

npm run build

🖲 Run the Backend

Go back to the project root directory:

cd ..

Activate the virtual environment, if you haven't already:

source .venv/bin/activate

Install any missing packages:

pip install -r requirements.txt

If you haven't already, train a CNN:

python scripts/train.py

Continue training an existing model:

python scripts/continue_training.py

Serve the web app:

python -m uvicorn main:app --port 8000 --reload

🚀 Deploy

Deploy to the cloud:

serverless deploy

Remove from the cloud:

severless remove

🗂️ Updated Files

Project structure

.
├── .venv/
├── .gitignore
├── .serverless/
├── resources
│   └── dog.jpg
├── frontend
│   ├── build/
│   ├── node_modules/
│   ├── public/
│   ├── src
│   │   ├── App.css
│   │   ├── App.test.tsx
│   │   ├── App.tsx
│   │   ├── ImageUpload.tsx
│   │   ├── index.css
│   │   ├── index.tsx
│   │   ├── logo.svg
│   │   ├── react-app-env.d.ts
│   │   ├── reportWebVitals.ts
│   │   ├── setupTests.ts
│   │   └── Sum.tsx
│   ├── .gitignore
│   ├── package-lock.json
│   ├── package.json
│   ├── README.md
│   └── tsconfig.json
├── output
│   ├── activations_conv2d/
│   ├── activations_conv2d_1/
│   ├── activations_conv2d_2/
│   ├── activations_dense/
│   ├── activations_dense_1/
│   ├── model.h5
│   ├── sample_images.png
│   └── training_history.png
├── scripts
│   ├── classify.py
│   ├── continue_training.py
│   └── train.py
├── Dockerfile
├── main.py
├── README.md
├── requirements.txt
└── serverless.yml

Dockerfile

FROM public.ecr.aws/lambda/python:3.9

# Install dependancies
COPY ./requirements.txt /requirements.txt
RUN pip install --no-cache-dir -r /requirements.txt

# Copy app code
COPY . .

# Lambda handler
CMD ["main.lambda_handler"]

serverless.yml

service: image-classification-service

provider:
 name: aws
 memorySize: 4096
 region: eu-west-2
 timeout: 60
 ecr:
  images:
   image-classification:
    path: ./
    platform: linux/amd64

functions:
 AppFunction:
  image:
   name: image-classification
  url: true
  events:
   - schedule: rate(1 minute)
