7. Serving our application

In the least lesson we built a frontend application.

Now we want to look at how we can partner this TypeScript code with Python - our workhorse language. This chapter will walk you through serving our app with FastAPI through Uvicorn webserver.

A web server is software that serves web pages, or other data, in response to HTTP requests.

Sometimes these requests come directly from a browser (like when you visit google.com), but they can also be made programmatically from Python, JavaScript or pretty much any language! Essentially, they allow us to trigger code to run on another machine, saving our local machine from doing the heavy lifting and allowing it to focus on things like the interface and presentation.

We're going to need a couple of new dependancies, so let's update our requirements.txt file with the following:

fastapi
uvicorn
mangum

And then update our installation by running:

pip install -r requirements.txt

FastAPI is a modern, high-performance web framework for building APIs with Python, based on standard Python type hints.

Uvicorn is an ASGI server that serves as the interface between FastAPI and the outside world. We won't need it when we're in production, but it's useful for testings.

Mangum is used to deploy the FastAPI app serverlessly. It'll route the Lambda reqeust into the appropriate FastAPI route.

Now, let's create a new file called app.py in the root directory:

touch app.py

This file will define our web-server.

Here's what it looks like:

from fastapi import FastAPI
from fastapi.middleware.cors import CORSMiddleware
from fastapi.staticfiles import StaticFiles
from mangum import Mangum
import os

# Instantiate the app
app = FastAPI()

# Server our react application at the root
app.mount("/", StaticFiles(directory=os.path.join("frontend",
          "build"), html=True), name="build")


# CORS
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],    # Permits requests from all origins.
    # Allows cookies and credentials to be included in the request.
    allow_credentials=True,
    allow_methods=["*"],    # Allows all HTTP methods.
    allow_headers=["*"]     # Allows all headers.
)

# Define the Lambda handler
handler = Mangum(app)


# Prevent Lambda showing errors in CloudWatch by handling warmup requests correctly
def lambda_handler(event, context):
    if "source" in event and event["source"] == "aws.events":
        print("This is a warm-ip invocation")
        return {}
    else:
        return handler(event, context)

🖇 Dependancies

From the top:

from fastapi import FastAPI
from fastapi.middleware.cors import CORSMiddleware
from fastapi.staticfiles import StaticFiles
from mangum import Mangum
import os

Here we're just importing the dependancies we need.

👨‍💻 App

# Instantiate the app
app = FastAPI()

# Server our react application at the root
app.mount("/", StaticFiles(directory=os.path.join("frontend",
          "build"), html=True), name="build")

We're instantiating our FastAPI application, and then we're going to mount the frontend React application we built in the prevous chapter at "/".

🍪 Cross-Origin Resource Sharing

# CORS
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],    # Permits requests from all origins.
    allow_credentials=True, # Allows cookies and credentials to be included in the request.
    allow_methods=["*"],    # Allows all HTTP methods.
    allow_headers=["*"]     # Allows all headers.
)

CORS stands for Cross-Origin Resource Sharing. It's a security feature implemented by web browsers to control requests made to different origins from web pages. It prevents unauthorized domains from making requests to a server, offering a way to secure your resources. ensures that only safe and approved cross-origin requests are allowed.

When building our web application, CORS errors and warnings can be annoying as they interrupt the development workflow, forcing us to debug issues related to cross-origin policy. These errors may even appear when we're just trying to fetch data from our own local API.

However, it's important to note that CORS serves a valuable purpose in securing the application. A lax CORS policy can expose the system to security vulnerabilities like Cross-Site Request Forgery (CSRF) or data breaches. Hence, while configuring CORS, especially in a production environment, it's crucial to be restrictive and explicit about what kinds of cross-origin requests the server should allow.

app.add_middleware(
    CORSMiddleware,
    allow_origins=["https://youdomain.com", "https://www.yourdomain.com"],
    allow_credentials=False,
    allow_methods=["GET", "POST"],
    allow_headers=["Authorization", "Content-Type"]
)

# Define the Lambda handler
handler = Mangum(app)

This uses Mangum to adapt an ASGI application (like one created with FastAPI) for use with AWS Lambda.

# Prevent Lambda showing errors in CloudWatch by handling warmup requests correctly
def lambda_handler(event, context):
    if "source" in event and event["source"] == "aws.events":
        print("This is a warm-ip invocation")
        return {}
    else:
        return handler(event, context)

When a Lambda function is invoked after being idle for some time, AWS will need to start a new instance of that function. This involves loading the code, initialising the runtime, and executing any startup tasks (like loading a model). This process, known as a cold start, adds latency to the function's response time.

In summary, this script efficiently distinguishes between warm-up invocations and actual requests, handling each appropriately. It prevents unnecessary error logs in CloudWatch for warm-up events and ensures that only real requests are processed by your application logic.

cd frontend
npm install
npm run build
cd -

We can start your webserver using:

python -m uvicorn main:app --port 8000 --reload

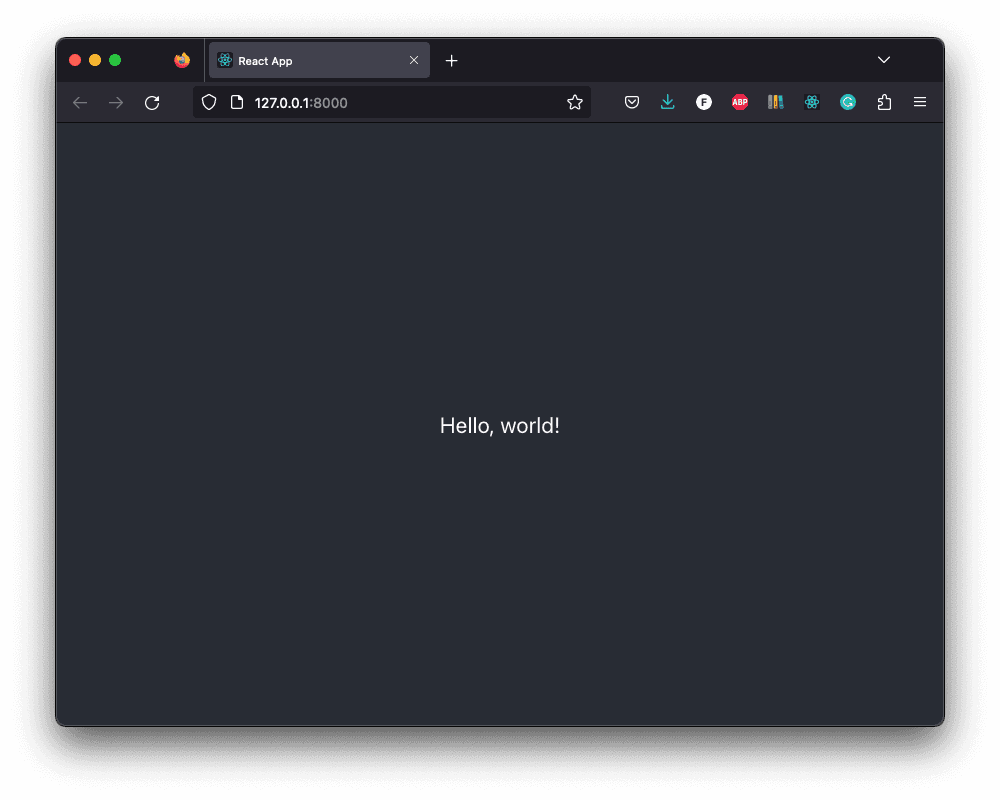

After which you can vist http://127.0.0.1:8000, and see your application:

This is exciting because everything, except the port number is not 8000 instead of 3000. Which means we've successfully served our frontend app from a backend!

Next time we'll look at sending a query from our frontend running on TypeScript, to be answered by our backend running on Python.

🐓 How to Run

🧱 Build Frontend

Navigate to the frontend/ directory:

cd frontend

Install any missing frontend dependancies:

npm install

Build the files for distributing the frontend to clients:

npm run build

🖲 Run the Backend

Go back to the project root directory:

cd ..

Activate the virtual environment, if you haven't already:

source .venv/bin/activate

Install any missing packages:

pip install -r requirements.txt

If you haven't already, train a CNN:

python scripts/train.py

Continue training an existing model:

python scripts/continue_training.py

Serve the web app:

python -m uvicorn main:app --port 8000 --reload

🗂️ Updated Files

Project structure

.
├── .venv/
├── .gitignore
├── resources
│   └── dog.jpg
├── frontend
│   ├── build/
│   ├── node_modules/
│   ├── public/
│   ├── src
│   │   ├── App.css
│   │   ├── App.test.tsx
│   │   ├── App.tsx
│   │   ├── index.css
│   │   ├── index.tsx
│   │   ├── logo.svg
│   │   ├── react-app-env.d.ts
│   │   ├── reportWebVitals.ts
│   │   └── setupTests.ts
│   ├── .gitignore
│   ├── package-lock.json
│   ├── package.json
│   ├── README.md
│   └── tsconfig.json
├── output
│   ├── activations_conv2d/
│   ├── activations_conv2d_1/
│   ├── activations_conv2d_2/
│   ├── activations_dense/
│   ├── activations_dense_1/
│   ├── model.h5
│   ├── sample_images.png
│   └── training_history.png
├── scripts
│   ├── classify.py
│   ├── continue_training.py
│   └── train.py
├── main.py
├── README.md
└── requirements.txt

requirements.txt

tensorflow
matplotlib
fastapi
mangum
uvicorn

main.py

from fastapi import FastAPI
from fastapi.middleware.cors import CORSMiddleware
from fastapi.staticfiles import StaticFiles
from mangum import Mangum
import os

# Instantiate the app
app = FastAPI()

# Server our react application at the root
app.mount("/", StaticFiles(directory=os.path.join("frontend",
          "build"), html=True), name="build")


# CORS
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],    # Permits requests from all origins.
    # Allows cookies and credentials to be included in the request.
    allow_credentials=True,
    allow_methods=["*"],    # Allows all HTTP methods.
    allow_headers=["*"]     # Allows all headers.
)

# Define the Lambda handler
handler = Mangum(app)


# Prevent Lambda showing errors in CloudWatch by handling warmup requests correctly
def lambda_handler(event, context):
    if "source" in event and event["source"] == "aws.events":
        print("This is a warm-ip invocation")
        return {}
    else:
        return handler(event, context)
